12" Ledsome Mitre Saws
(Select the saw of your interest below or scroll down to see them all.)
#1000 wood | #2000 wood/metal
| #7000 hydramatic wood/metal | #6000
Hydramatic wood
#8000 wood sample saw

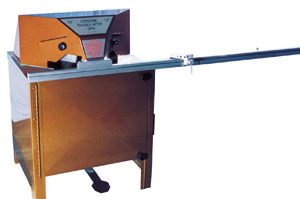

The Model #1000 12" Double Mitre Saw is a wood
saw with a 4-1/4" cutting capacity -- a full 1" more than some other 12"
saws. The Model #1000 gives you the same perfect 45 mitre as our other
models but we have taken some of the extra cost off. The Model #1000 is
equipped with one set of 90-tooth lazer blades - the finest mitre blade
available - one production stop, a 60" stainless measuring scale (increments
of 1/8"), one chipbreaker, and a full three-year factory warranty. The
Model #1000 runs two 1-HP, 3450 RPM motors on single-phase 220 electricity
and it is foot operated. Optional equipment available includes a
120” scale. Saw vac included.
-

-
Specifications: Model #1000
Dimensions: Height 46”, Depth 31”, Width 81”
Scale 60” Cut Cap. 4-1/4”
Foot Operated
Motors; 2, 1 HP, 3450 RPM, 220v Single Phase
Blades; 2, 12”x90 tooth
The Model #2000 is about the finest double mitre
saw ever built! The 12” Model #2000 has a cutting capacity of 4-1/4”, cutting
every type of moulding from wood to metal, all without changing blades.
The Model #2000 comes equipped with an on-demand lubrication system. With
a flip of a switch you can go from cutting wood to metal mouldings. Also
included are two sets of 12” Lazer Blades, two production stops for fast
mitering, a 60” stainless scale accurate to .009 over 60”, chipbreaker,
and a saw vac dust collection system. The Model #2000 is foot operated
and runs on 220 single-phase electricity with two 1-HP, 3450 RPM motors.
The perfect mitering system for all shops!
Specifications: Model #2000
Dimensions: Height 46”, Depth 31”, Width 81”
Scale: 60” Cut Cap.: 4-1/4” Foot Operated
Motors: 2, 1 HP, 3450 RPM, 220v Single Phase
Blades: 4, 12”x 90 tooth
Saw Vac.: 980 CFM 110v, Compressor: 1/4 HP 110v

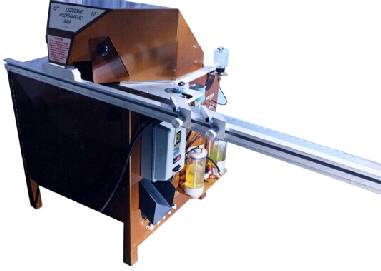

The Model #7000 is the new generation of production
double mitre saws. It uses a combination hydraulic/pneumatic (air) scheme
for high-production mitering of wood or metal materials. The Model #7000
runs off your existing air supply and 220v 3-phase electricity. As with
all our mitre saws the Model #7000 is equipped with a 3-position stroke
system which allows you to shorten the stroke cycle for cutting a large
volume of smaller mouldings. The Model #7000 air control regulator allows
you to vary cutting speeds for each substrate you cut. The Model #7000
will give you 26-36 mitres per minute, depending on the regulator setting
and the stroke setting. Included in your Model #7000 are two sets of lazer
blades, a 60” stainless scale, chipbreaker, an on-demand lubrication system
and two production stops. The Model #7000 is vented with a 3” duct to hookup
to your existing duct system.
Specifications: Model #7000
Dimensions: Height 46”, Depth 31”, Width 81”
Scale: 60” Cut Cap.: 4-1/4” Foot Operated
Motors: 2, 2 HP, 3450 RPM, 220v 3 Phase
Blades: 4, 12”x 90 tooth
The Model #6000 is another of the new generation
of production double mitre saws. Similar to the Model #7000, it uses a
combination hydraulic/pneumatic scheme for high-production mitering but
it is limited to wood materials. The Model #6000 runs off your existing
air supply and 220v 3-phase electricity. As with all our mitre saws the
Model #6000 is equipped with a 3-position stroke system which allows you
to shorten the stroke cycle for cutting a large volume of smaller mouldings.
The Model #6000 air control regulator allows you to vary cutting speeds
for each substrate you cut. The Model #6000 will give you 26-36 mitres
per minute, depending on the regulator setting and the stroke setting.
Included in your Model #6000 are two sets of lazer blades, a 60” stainless
scale, chipbreaker, and two production stops. The Model #6000 is vented
with a 3” duct to hookup to your existing duct system.
Specifications: Model #6000
Dimensions: Height 46”, Depth 31”, Width 81”
Scale: 60” Cut Cap.: 4-1/4” Foot Operated
Motors: 2, 2 HP, 3450 RPM, 220v 3 Phase
Blades: 4, 12”x 90 tooth

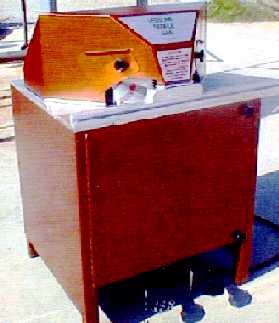

The Model #8000 is a special order machine. It
does what the name implies -- cuts samples. The Model #8000 mitres a perfect
45, for your corner samples sent out to your customers. There is no wasted
moulding and it gives your customer a look at the quality of miters. Some
framers send out thousands of samples. Each blade on the Model #8000 works
independently with its own foot pedal. A safety feature is that only one
of the blades is in operation at a time. The Model #8000 has a 10” stainless
measuring scale on both sides of the blades for both samples. Cut your
cost of samples with the Model #8000.
Specifications: Model #8000
Dimensions: Height 46”, Depth 31”, Width 81”
Scale: 10” Cut Cap.: 4-1/4” Foot Operated
Motors: 2, 1 HP, 3450 RPM, 220v Single Phase
Blades: 2, 12”x 90 Dynite
